Partnered Facility details
Our Engineering
let’s say, Following are the facilities we provide along with our Partners with exclusive NDA’s with a vast experience on Critical space, aerospace, automobile, process engineering component manufacturing.
Milling capabilities

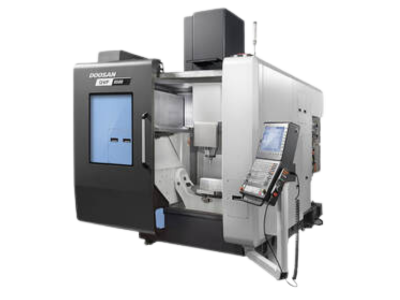

5 Axis
• Size Ø850mmx550mm, 12000 RPM, with Glass scale encoder
Vertical Milling machine
• CNC 01- Size 800mm x 550mm x 550mm, with 4th Axis
• CNC 02-Size 1000mm x 600mm x 960mm, with 4th Axis
Inspection Facility
CMM 01
• Carl Zeiss (Spectrum), SW Calypso, measuring range
700mmx1000mmx600mm

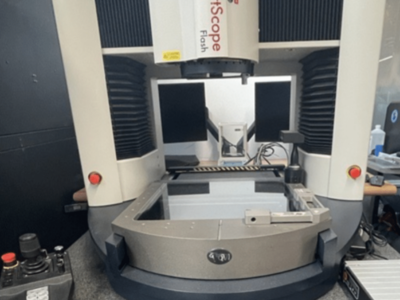

VMM 01
• Smart scope Flash 200 (OGP- QVI ), measuring range – 200mmx
200mmx150mm, Fully programable with Datum establishment, Depth
measurement Features etc.
Surface Roughness Tester
• Surf com touch 50 ( Carl Zeiss), Ra & Rz, etc. Straightness accuracy of
0.3µ/50mm
Turning capabilities

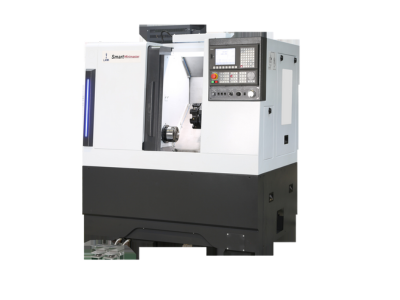

CNC Turning centre
• CNC 03-Chuck size : 10”, Capacity : Ø350mm x 550mm
• CNC 04-Chuck size : 16”,Capacity : Ø550mm x 750mm
Lathe Machines:
• Qty 4 nos
• Capacity ranging from Ø100mm – Ø406 mm and length 600mm to 2500mm
Conventional machines
MM 01 –Universal Milling machines
• Capacity: 600mm x400mm
MM 02 –vertical Milling machines
•Capacity : 600 x400mm
Cylindrical Grinding machines
•Qty 3 nos
•Capacity – Ø250mm x750mm
Surface grinding Machines
•Qty 2 nos
•Capacity 200mm x 350mm
•With Magnetic plate
Laser Cutting and Bending
• Make: Wila CNC
• Bed size: 3m x 1.5m
• Laser: 1500W
• Max sheet thickness: 15mm Carbon steel,
6mm Stainless Steel and 4mm Aluminum
80tons Bending Machine
